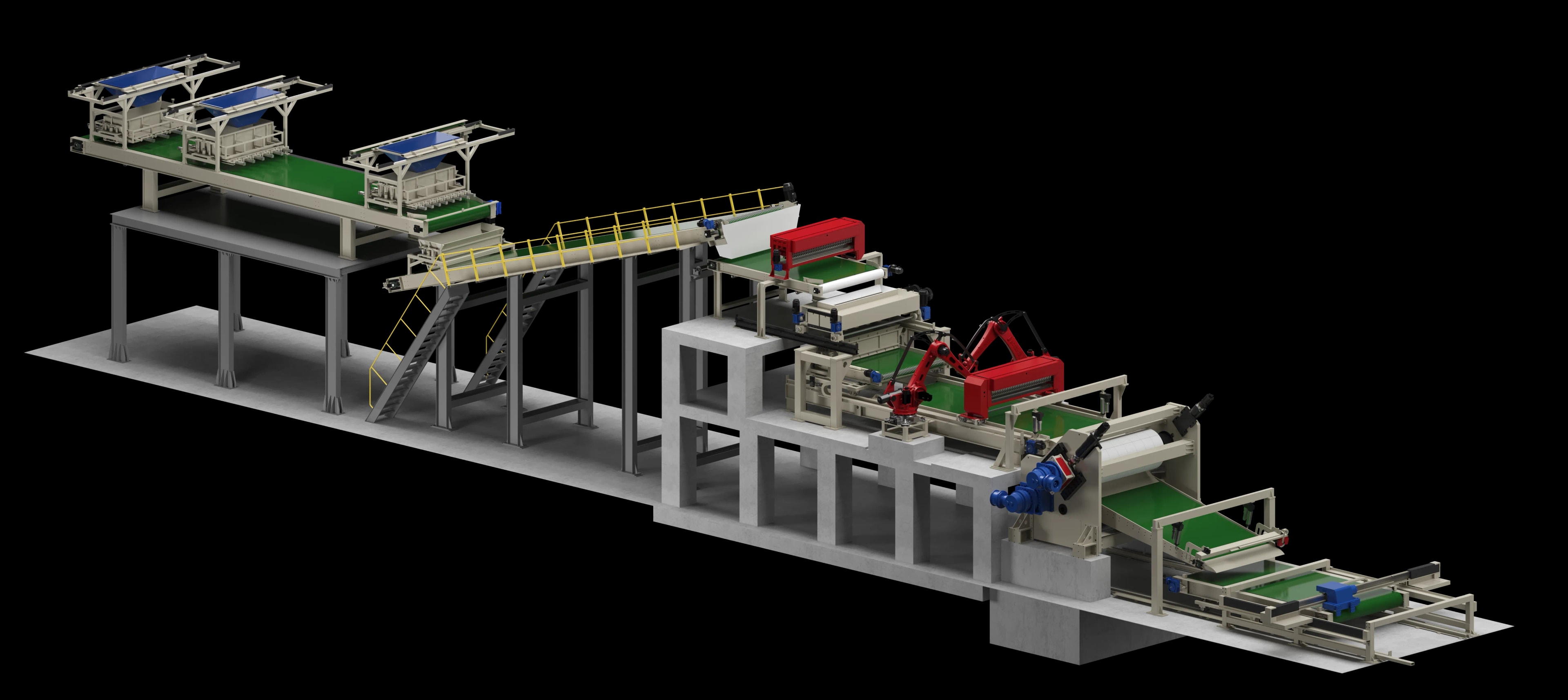

"The Kripton" machinery line is the latest innovation in material handling and processing, designed to deliver multiple solutions integrating no. 6 steps during the process for create unique designs.

Hoper 4+4 Gates

Hoper 6+6 Gates

Hoper 8+8 Gates

Key Features

Step 1

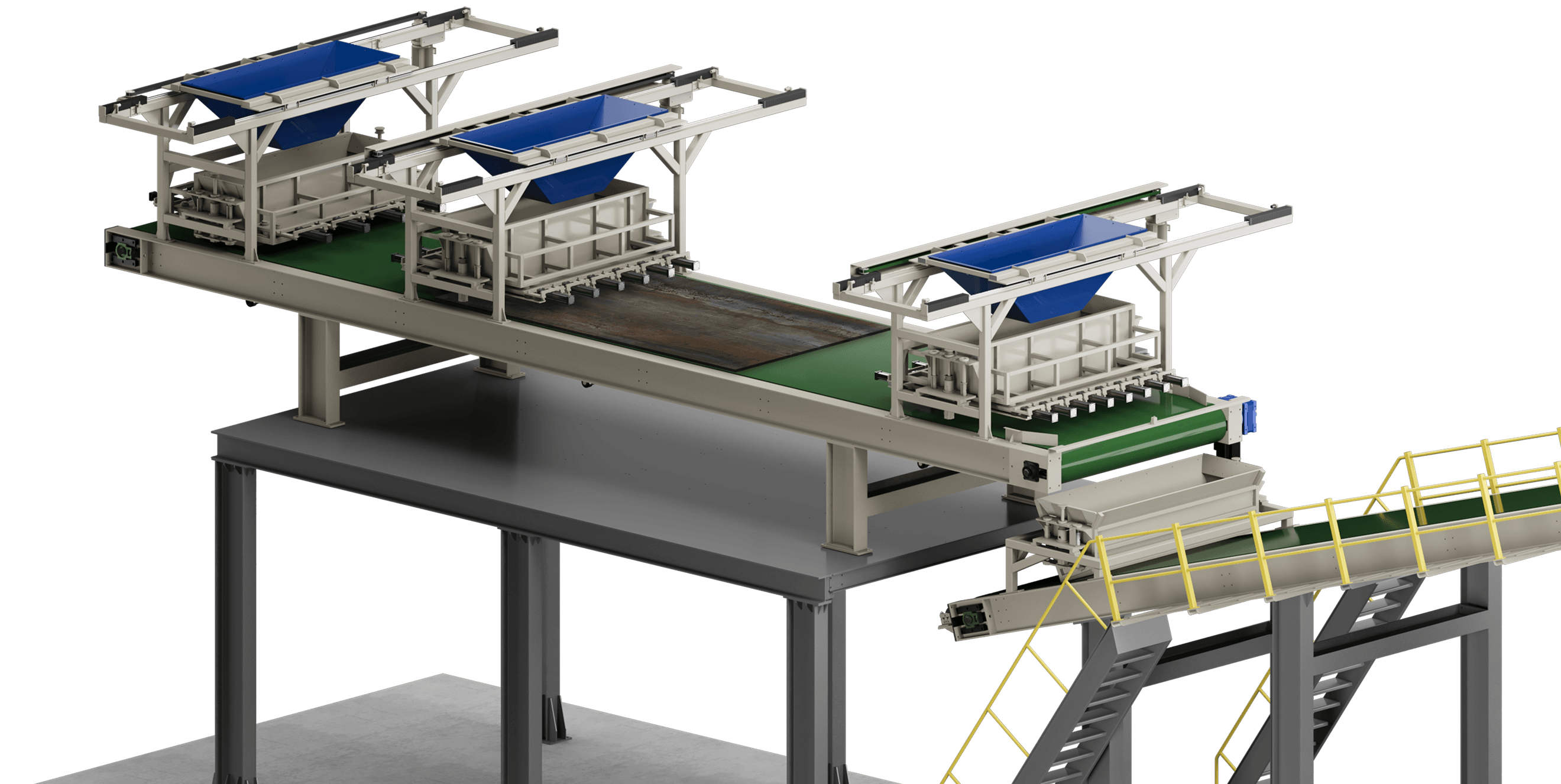

Advanced Hopper System

Each hopper in "The Kripton" line is equipped with an automated discharge system, allowing seamless material flow.

Designed for background designs, the system ensures optimal placement of materials for replicate natural stone backgrounds with big and small multi-shades areas.

Hoppers can handle color-specific materials, with each unit receiving a different color directly from the mixer. The 4+4 and 6+6 hopper units are designed for position side-by-side materials or layered on top each other with maximum throughput and efficiency.

The 8+8 hopper unit is uniquely designed to discharge materials on top of others, enabling layered material applications for specialized processes.

Safety and Visibility

Yellow guardrails are incorporated throughout the machinery, ensuring worker safety while maintaining clear operational visibility.

High-contrast red overall sections highlight critical areas for enhanced monitoring.

Step 2

Equipped with no.2 Automatic Veins injectors, each of them handling no. 2 powder pigments colors for create cloud or stretched veins.

Step 3

No. 1 set of lump-breaker to merge the multiple colors layers created during the STEP 1

Step 4

No. 2 Robots Arms operated by Italian software, it will allow to use powder pigments, liquid pigments and B body materials for a natural stone blend of colors and designs.

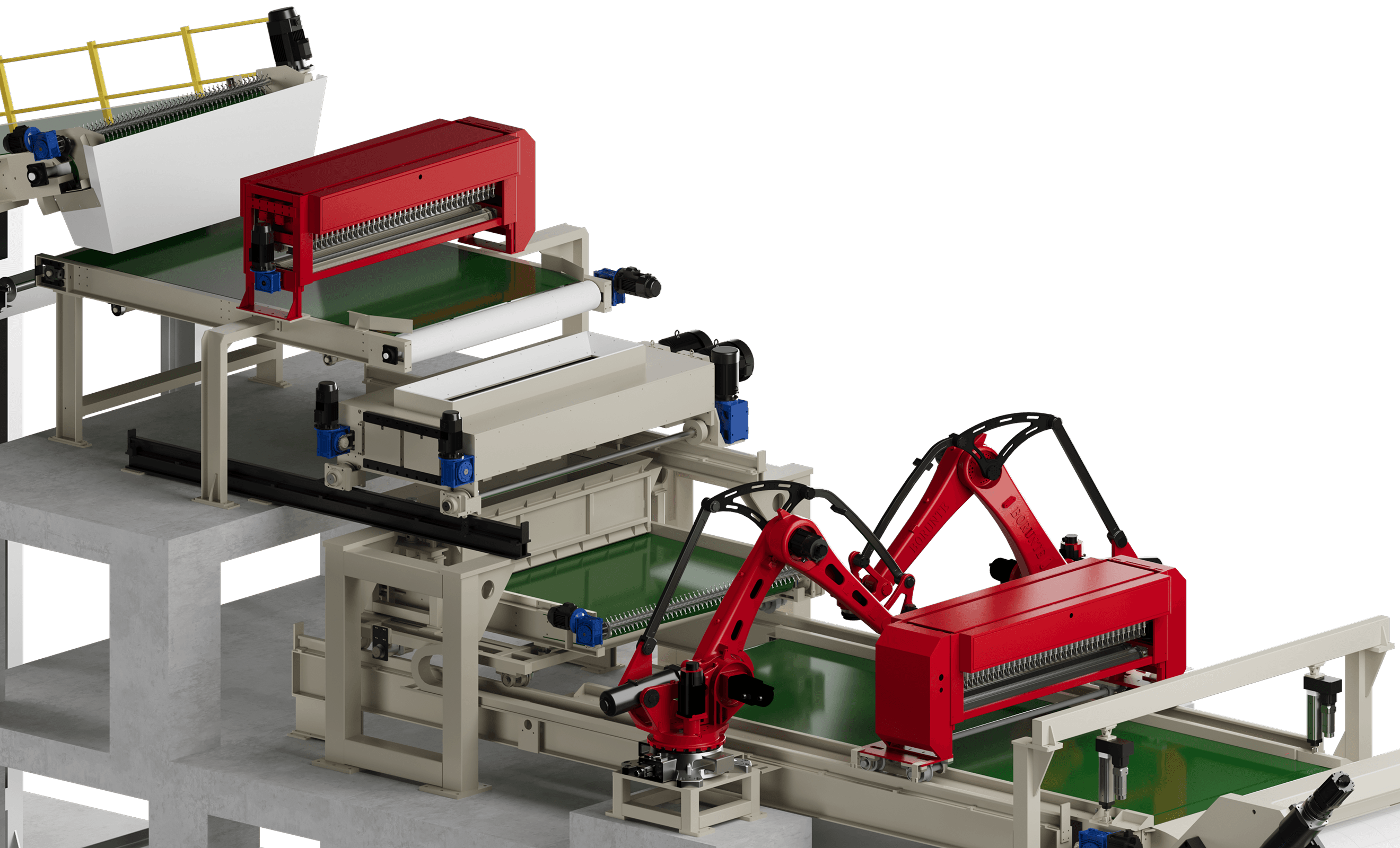

Kripton isometric illustration steps 2, 3, and 4

Step 5

"The Kripton" is up to 60 tons rollers power compacting, from a minimum of 6 mm to a maximum of 80 mm opening, it will allow to create multi layers and design material and to guarantee a exceptional thickness control in terms of saving costs.

Step 6

Digital industrial printing for performing the imagination into reality. This printer is designed to print directly onto the material before the pressing process.

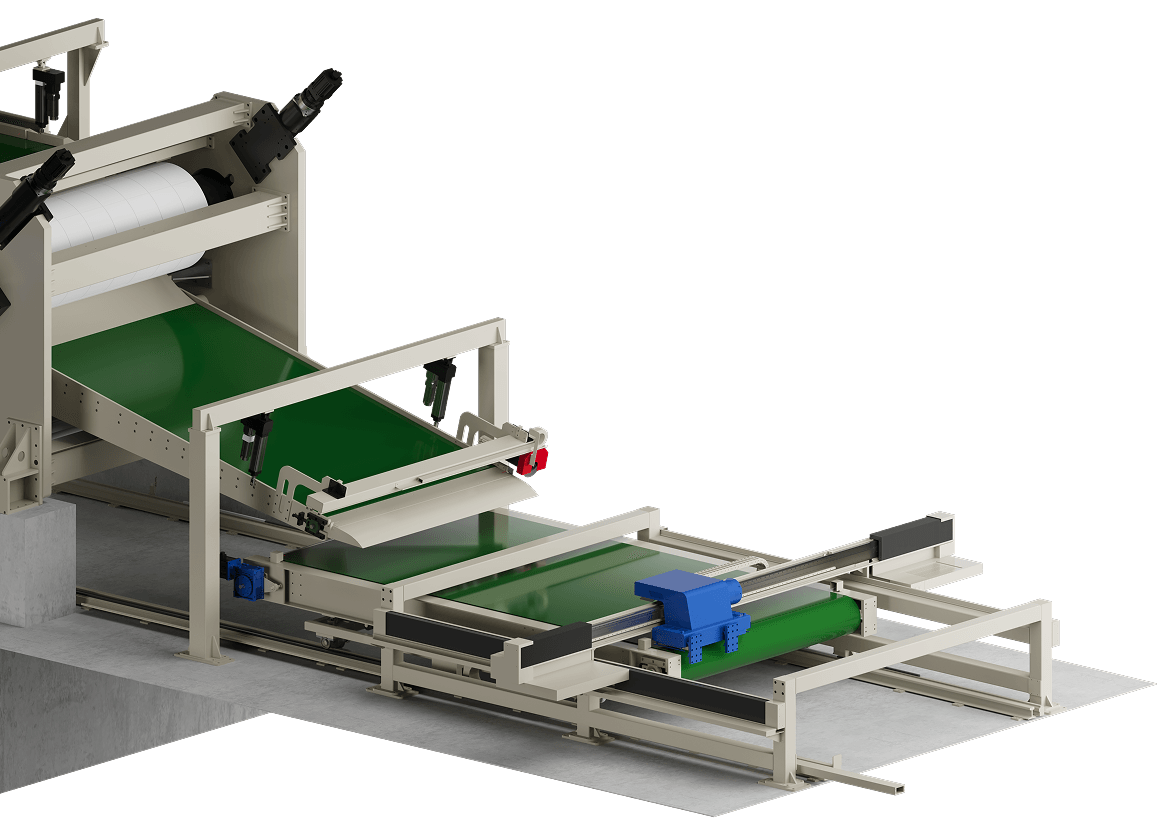

Kripton isometric illustration steps 5 and 6

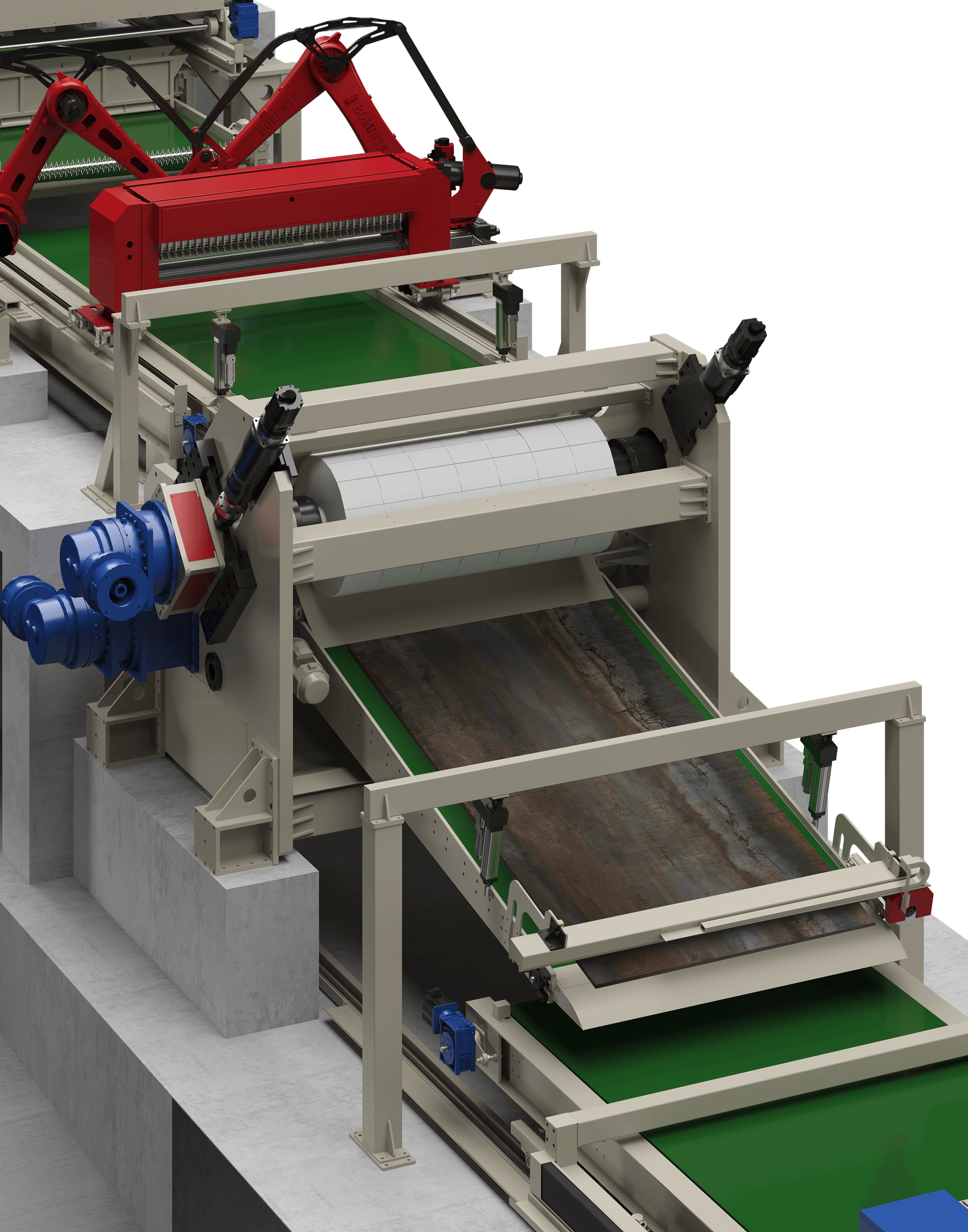

Kripton isometric illustration pressing machine

The Kripton reduces pressing time by 30% as the material is pre-pressed by rollers with a compacting force of 50 tons.

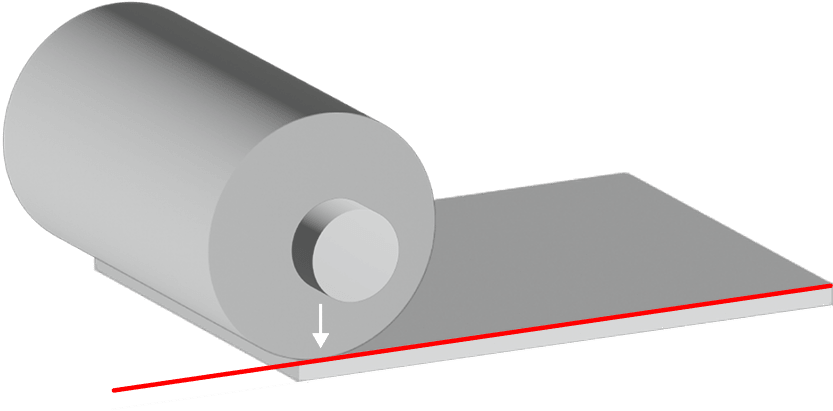

Kripton isometric illustration pressing roller

50 tons

The Kripton ensures an additional "only" 3mm of material beyond the final thickness.

additional 3mm

"The Kripton" line is engineered for durability and reliability, with robust materials and modular design elements.

The elevated platforms and precision-engineered components are tailored for seamless integration into your existing production environments.

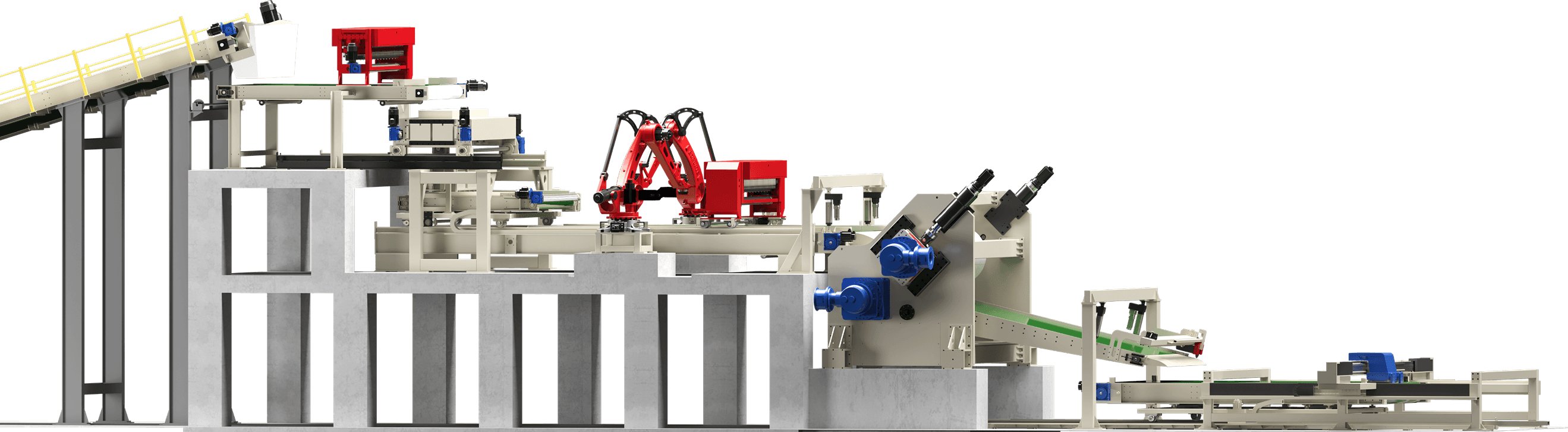

Kripton isometric illustration machine line
